悬臂梁传感器
型号/品名：SQB总装A
产品参数表
| 额定载荷(t) Rated load | L | L1 | L2 | L3 | L4 | B | H | H1 | H2 | D | E |
| 0.1~2.5 | 130 | 53.5 | 25.4 | 76.2 | 12.7 | 31.8 | 85~90 | 31.8 | 4 | Ø 13 | Ø 62 |
| 3~5 | 171.5 | 72.5 | 38.1 | 95.3 | 19 | 38.1 | 104~114 | 38.1 | 6 | Ø 20 | Ø 62 |
| 7.5~10 | 225.5 | 102 | 50.8 | 124 | 25.3 | 50.8 | 132~144 | 50.8 | 8 | Ø 27 | Ø 80 |

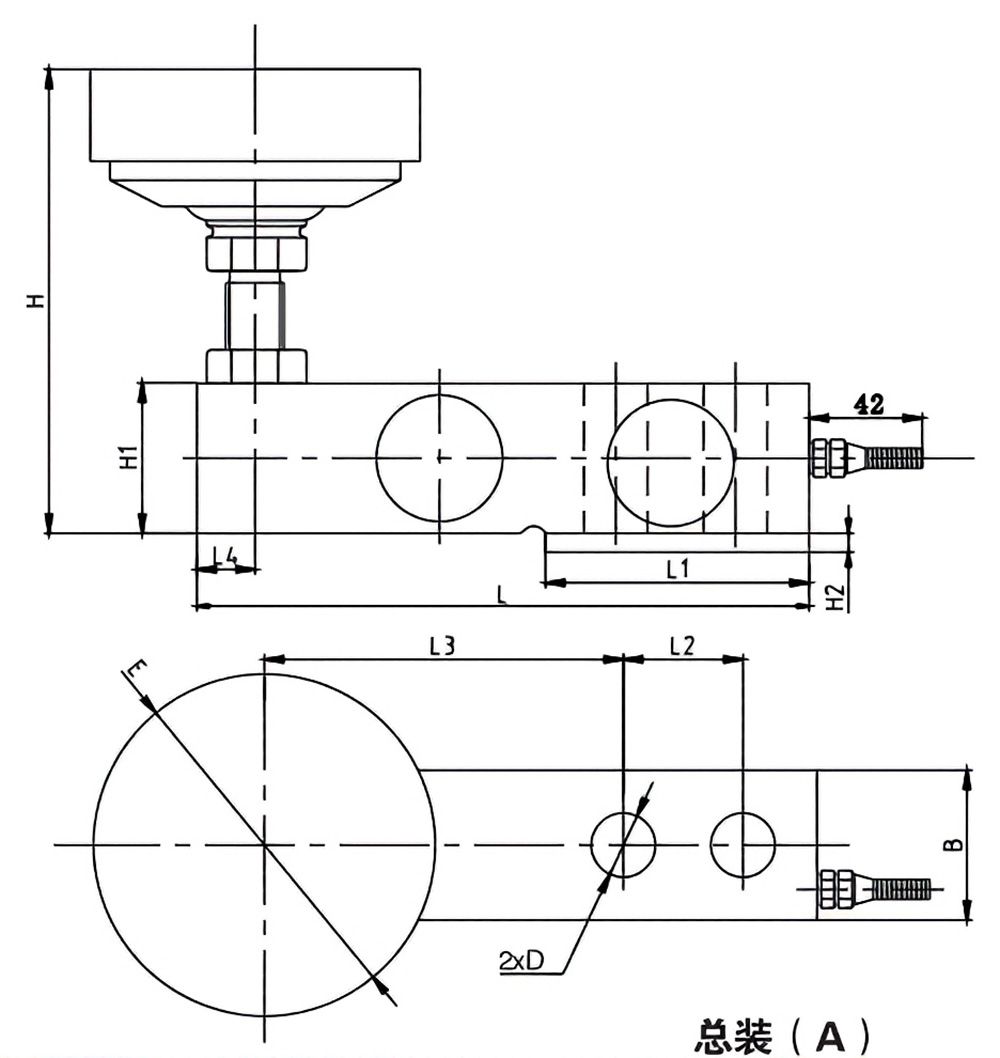

产品尺寸图
