悬臂梁传感器
型号/品名：SQB0.1~2.5T
配料控制系统、平台称Blending control system, low platform scale4Wires;Exc+(红，Red);Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
应用范围
Platform scale
产品认证
配料控制系统、平台称
Blending control system, low platform scale
4Wires;Exc+(红，Red);Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)

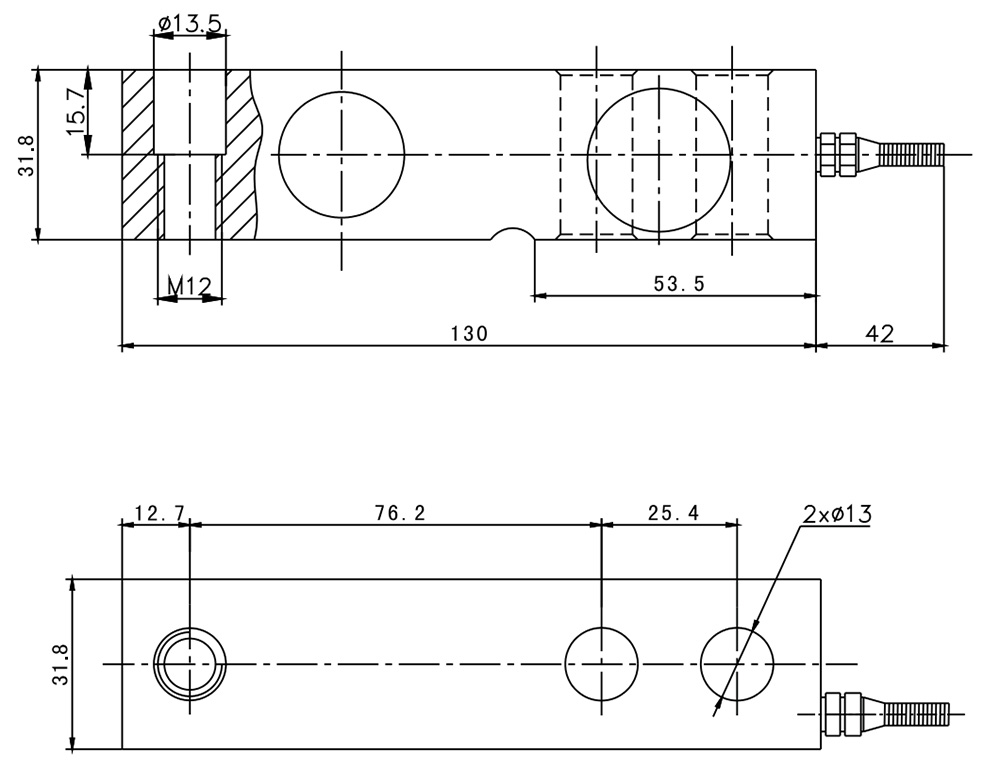

产品尺寸图
| 额定载荷Rated load | 0.1、0.15、0.2、0.25、0.30.5、0.75、1、1.5、2、2.5t | 输出阻抗 Output resistance | 352±3Ω |
| 精度等级 Accuracy class | C2~C3 | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 灵敏度 Sensitivity | 0.1~0.3t;2.0±0.002mV/V0.5~2.5t;3.0±0.003mV/V | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 0.1~0.3t;2.0±0.002mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 线性误差 Non-linearity | ±0.03%F.S | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.03%F.S | 破坏负载 Breaking laod | 200%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO | ±0.02%F.S/10°C | 密封等级 Protection Class | IP67 (0.1~0.75t)IP68 (1~2.5t) |
| 灵敏度温度影响 TC SPAN | ±0.02%F.S/10°C | 材料 Material | 合金钢Alloy Steel |
| 输入阻抗 Input resistance | 400±20Ω | 电缆Cable | Length:1.5m:3m 比例 1:1 |
| 输入阻抗 Input resistance | 400±20Ω | ||
