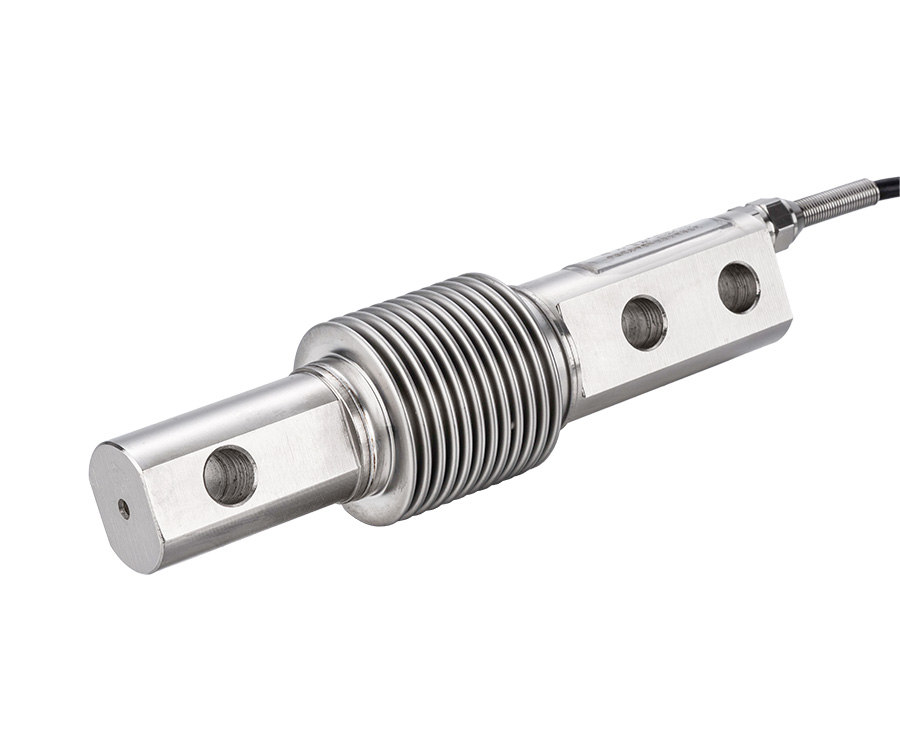

悬臂梁传感器
型号/品名：HSXB
激励+（红）Exc+(Red)信号 $+$ （绿）Sig+(Green)激励-（黑）Exc-(Black)信号-（白）Sig-(white)屏蔽线 ShieldTECHNICAL PARAMETER4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Shied(黄，Yellow)

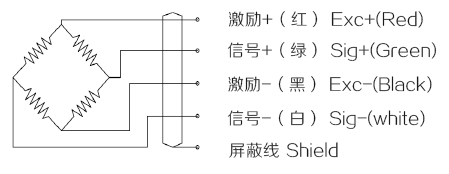

接线示意图
激励+（红）Exc+(Red)
信号 $+$ （绿）Sig+(Green)
激励-（黑）Exc-(Black)
信号-（白）Sig-(white)
屏蔽线 Shield
TECHNICAL PARAMETER
4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Shied(黄，Yellow)

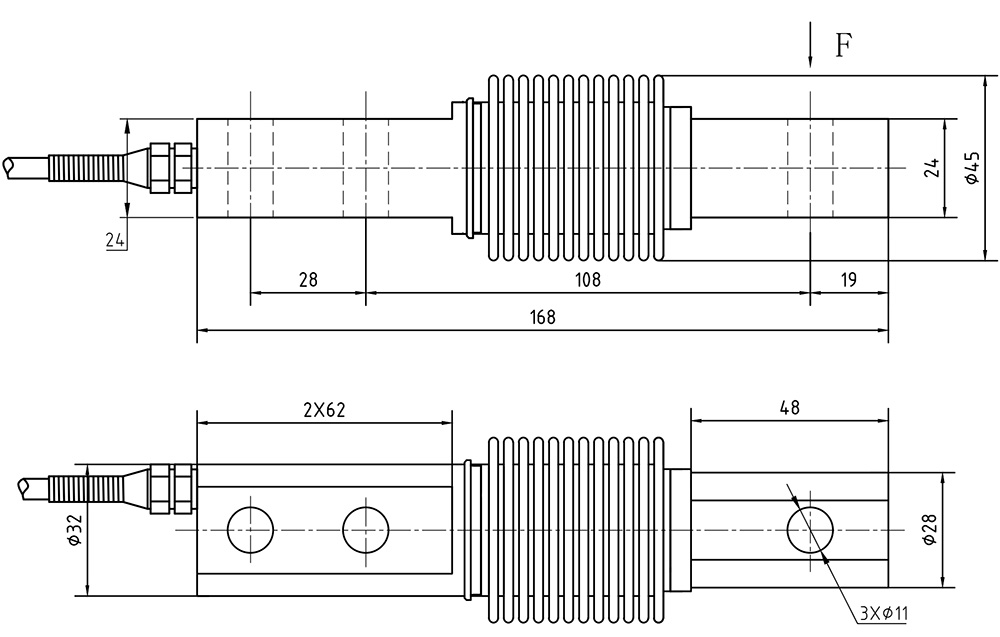

产品尺寸图
| 额定载荷Rated load | 100,150,200, 250,300,500kg |
| 灵敏度 Sensitivity | 2.0±0.002mV/V |
| 精度等级 Accuracy class | C2 |
| 蠕变(30分钟) Creep (30min) | ±0.02%F.S |
| 零点平衡 Zero balance | ±1%F.S |
| 零点温度影响TCO | ±0.02%F.S/10°C |
| 输出温度影响 TC SPAN | ±0.02%F.S/10°C |
| 输入阻抗 Input resistance | 400±20Ω (ohms) |
| 输出阻抗 Output resistance | 352±3Ω (ohms) |
| 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 额定温度 Nominal Temp Range | -10~+40°C |
| 工作温度范围 Service Temp Range | -30~+70°C |
| 安全过载 Safe load limit | 120%F.S |
| 极限过载 Lateral load limit | 150%F.S |
| 推荐激励电压 Recommended excitation | 10~12V DC |
| 最大激励电压 Maximum excitation | 15V DC |
| 密封等级 Protection Class | IP67 |
| 材料 Material | 合金钢Alloy Steel |
| 电缆Cable | Length: 3m Diameter: Ø 5mm |
