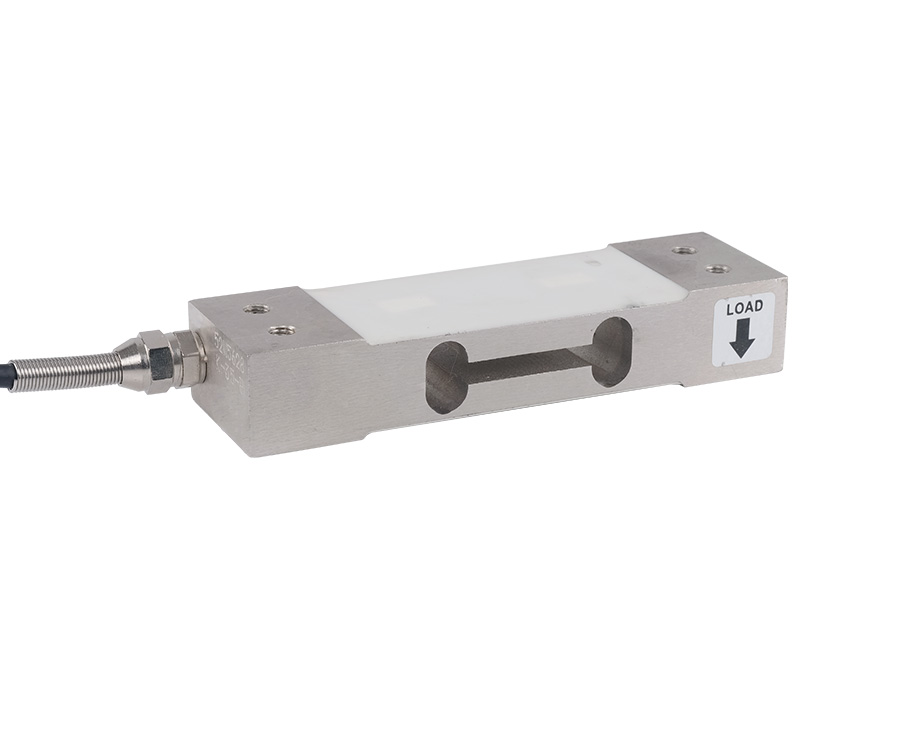

单点式传感器
型号/品名：ILK
配料秤、包装称、动态检测系统、台秤Ingredient scale, packaging scale, dynamic detection system, platform scaleTECHNICAL PARAMETER4Wires;Exc+(红，Red);Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
应用范围
Platform scale
配料秤
产品认证
配料秤、包装称、动态检测系统、台秤
Ingredient scale, packaging scale, dynamic detection system, platform scale
TECHNICAL PARAMETER
4Wires;Exc+(红，Red);Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)

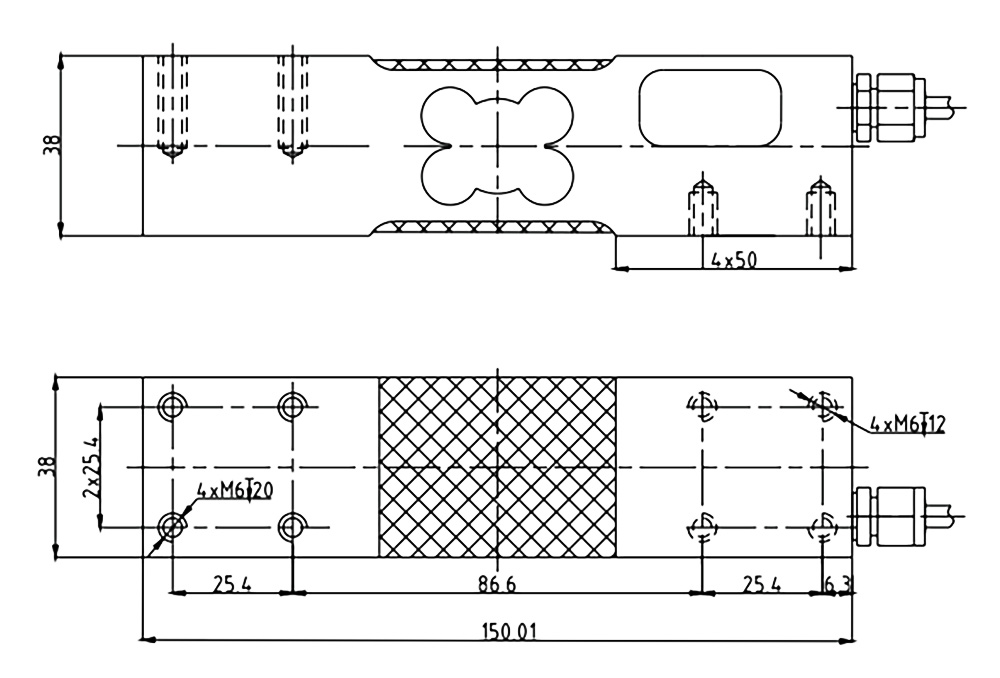

产品尺寸图
| 额定载荷Rated load | 50、100、150、200、250kg | 绝缘电阻 Insulation resistance | ≥ 5000MΩ |
| 精度等级 Accuracy class | 0.03 | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 2.0±0.2mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 线性误差 Non-linearity | ±0.03%F.S | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.03%F.S | 破坏负载 Breaking laod | 200%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.02%F.S/10°C | 密封等级 Protection Class | IP65 |
| 灵敏度温度影响 TC SPAN | ±0.02%F.S/10°C | 材料 Material | 合金钢Alloy Steel 不锈钢stainless steel |
| 输入阻抗 Input resistance | 400±20Ω | 电缆Cable | Length=1m, Diameter:5 |
| 输出阻抗 Output resistance | 352±5Ω | 最大称台尺寸 Max platform size | 400x400mm |
