其他结构传感器

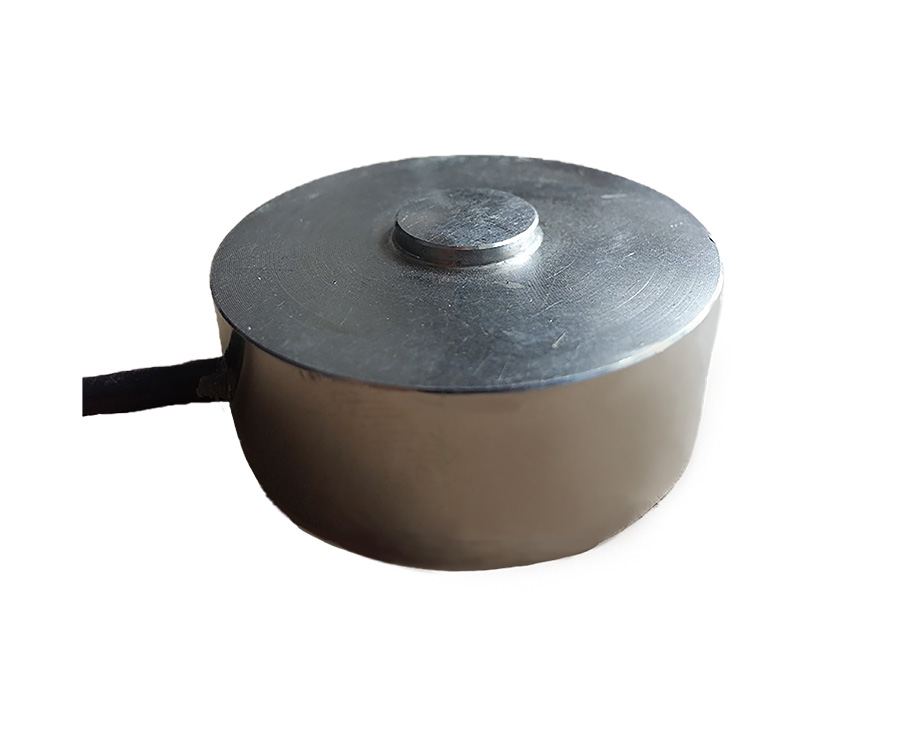

型号/品名：NK
空间小的压式测力场合Pressure testing for small space4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)

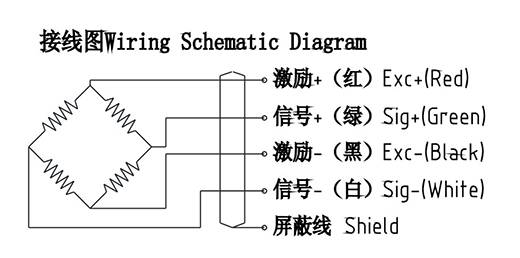

接线示意图
产品认证
空间小的压式测力场合
Pressure testing for small space
4Wires;Exc+(红，Red)；Exc-(黑，Black);Slg+(绿，Green);Sig-(白，White)
产品参数表
| 量程(lb)Range | D1 | D2 | D3 | H | L | M | B |
| 100~500 | 32 | 8.1 | 25.4 | 10 | 1.8 | #6-32UNC | SR35 |
| 1000~2500 | 38 | 11 | 31.4 | 16 | 2 | #6-32UNC | SR40 |

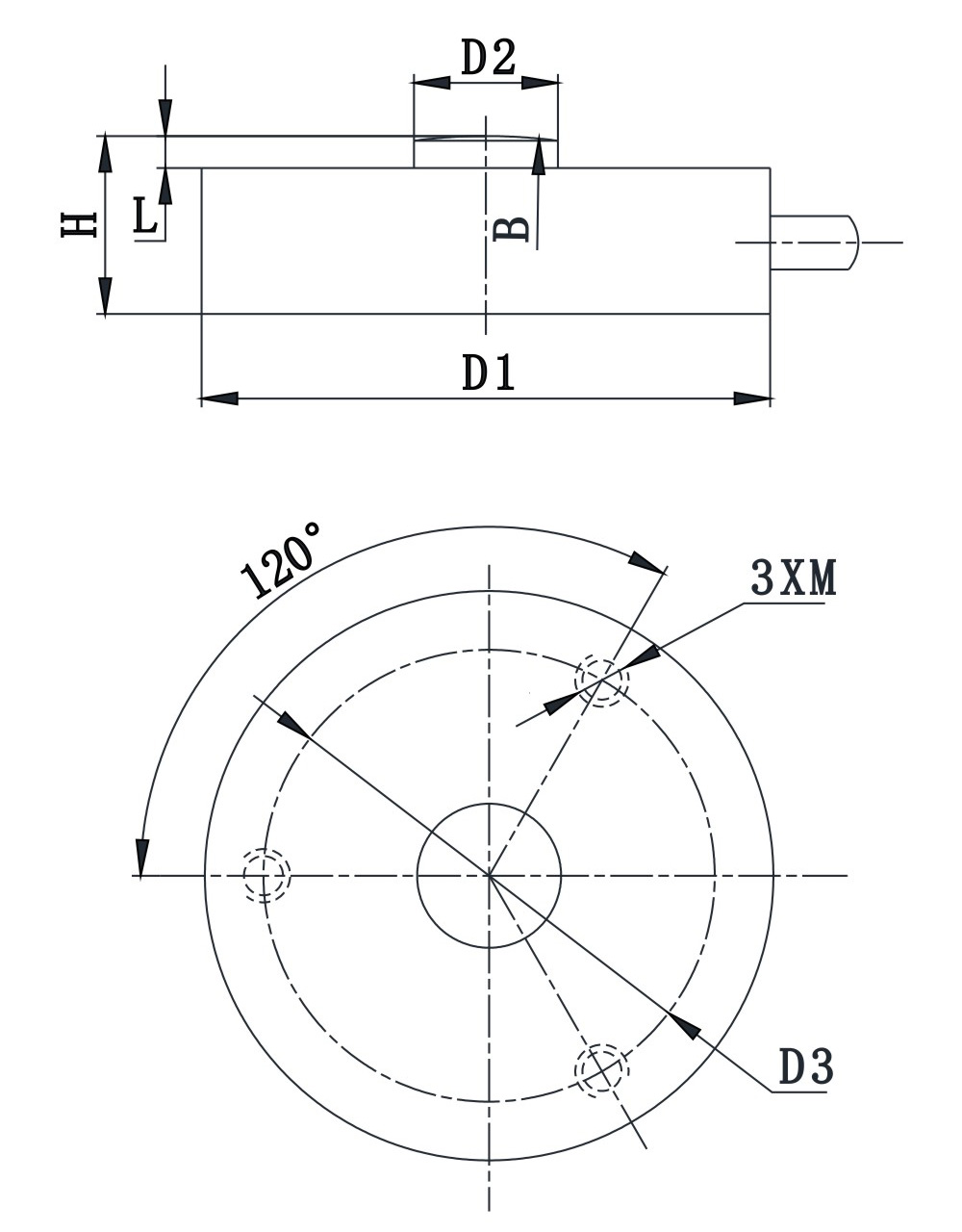

产品尺寸图
| 额定载荷Rated load | 100,200,250,500,1000,1500,2500 | 绝缘电阻 Insulation resistance | ≥ 5000/50VDC |
| 重复性 Repeatability | ±0.5%F.S | 额定温度 Nominal Temp Range | -30~+70°C |
| 灵敏度 Sensitivity | 1.5±0.5mV/V | 工作温度范围 Service Temp Range | -30~+70°C |
| 线性误差 Non-linearity | ±0.5%F.S | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.5%F.S | 破坏负载 Breaking laod | 200%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.2%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.2%F.S/10°C | 密封等级 Protection Class | IP65 |
| 灵敏度温度影响 TC SPAN | ±0.2%F.S/10°C | 材料 Material | 不锈钢17-4PHstainless steel |
| 输入阻抗 Input resistance | 350±50Ω | 电缆Cable | Length: Ø 3×1.5m |
| 输出阻抗 Output resistance | 352±3Ω | ||
