S型传感器

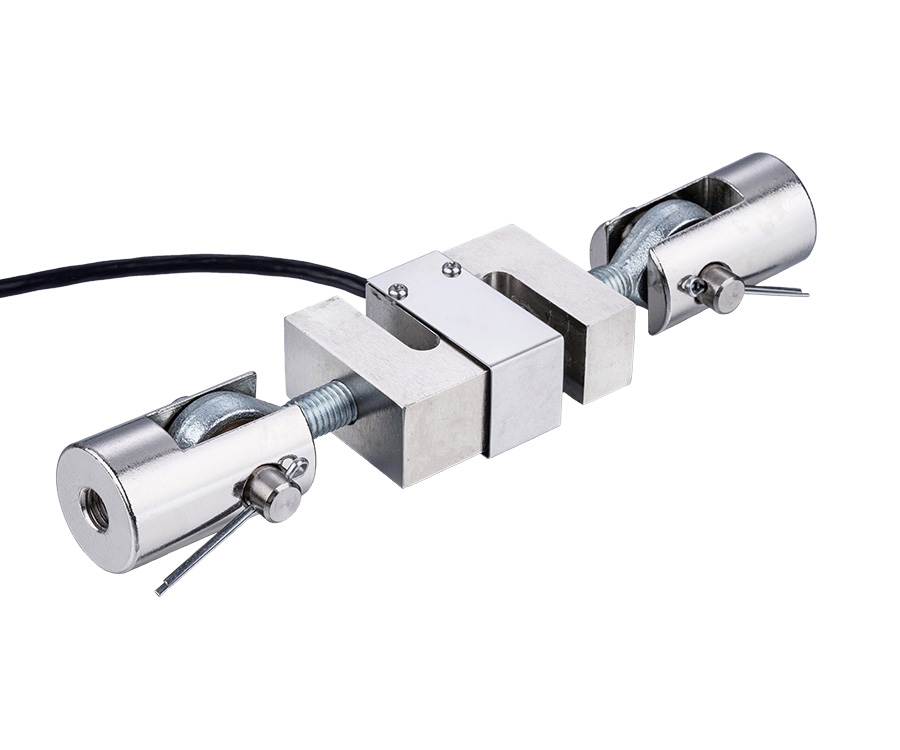

型号/品名：DEE附件
产品参数表
| 额定载荷Rated load | L1 | W | H | L (max) | L3 | L2 | D | T1 | T |
| 50~750kg | 76.2 | 51 | 19.1 | 228 | 56 | 20 | Ø 34 | M12 | M12 |
| 1t | 76.2 | 51 | 25.4 | 228 | 56 | 20 | Ø 34 | M12 | M12 |
| 1.5~5t | 100.4 | 76.2 | 31.8 | 314 | 85 | 30 | Ø 49 | M20×1.5 | M24 |

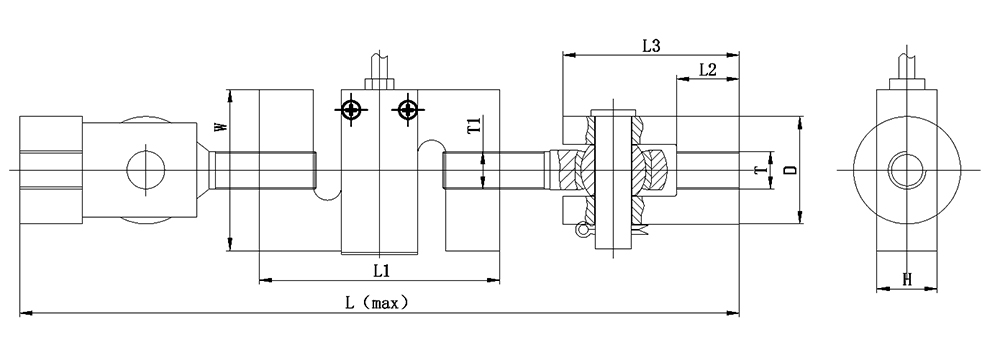

产品尺寸图
| 额定载荷Rated load | L1 | W | H | L (max) | L3 | L2 | D | T1 | T |
| 50~750kg | 76.2 | 51 | 19.1 | 228 | 56 | 20 | Ø 34 | M12 | M12 |
| 1t | 76.2 | 51 | 25.4 | 228 | 56 | 20 | Ø 34 | M12 | M12 |
| 1.5~5t | 100.4 | 76.2 | 31.8 | 314 | 85 | 30 | Ø 49 | M20×1.5 | M24 |
