控制仪表

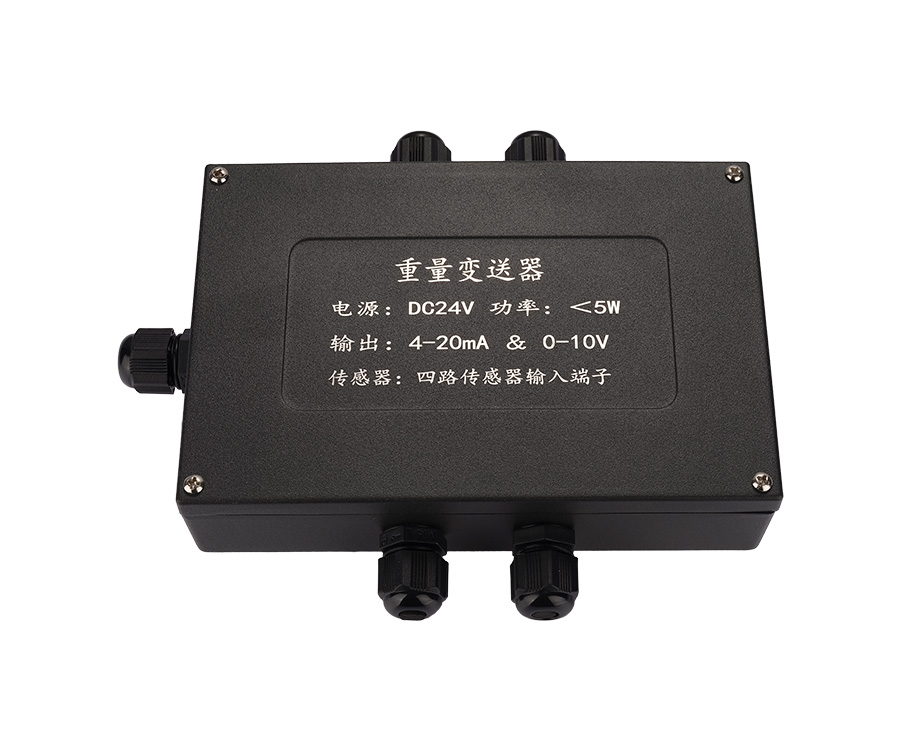

型号/品名：KH02A
PRODUCT INTRODUCTION※特点：采用密封式外壳，防护等级为IP67，工作温度范围 $-30^{circ}mathrm{C} sim 60^{circ}mathrm{C}$ ，可应用于各种工业环境。信号输出类型可选择：4~20mA（或0~20mA）、0~5V(或0~10V)※FEATURES:It adopts a sealed enclosure with an IP67 protection rating and an operating temperature range
PRODUCT INTRODUCTION
※特点：
采用密封式外壳，防护等级为IP67，工作温度范围 $-30^{circ}mathrm{C} sim 60^{circ}mathrm{C}$ ，可应用于各种工业环境。
信号输出类型可选择：4~20mA（或0~20mA）、0~5V(或0~10V)
※FEATURES:
It adopts a sealed enclosure with an IP67 protection rating and an operating temperature range of $-30^{circ}mathrm{C} sim 60^{circ}mathrm{C}$ , making it applicable to various industrial environments.
Selectable signal output types: $4sim 20mathrm{mA}$ (or $0sim 20mathrm{mA}$ ), $0sim 5mathrm{V}$ (or $0sim 10mathrm{V}$ )
TECHNICAL PARAMETER

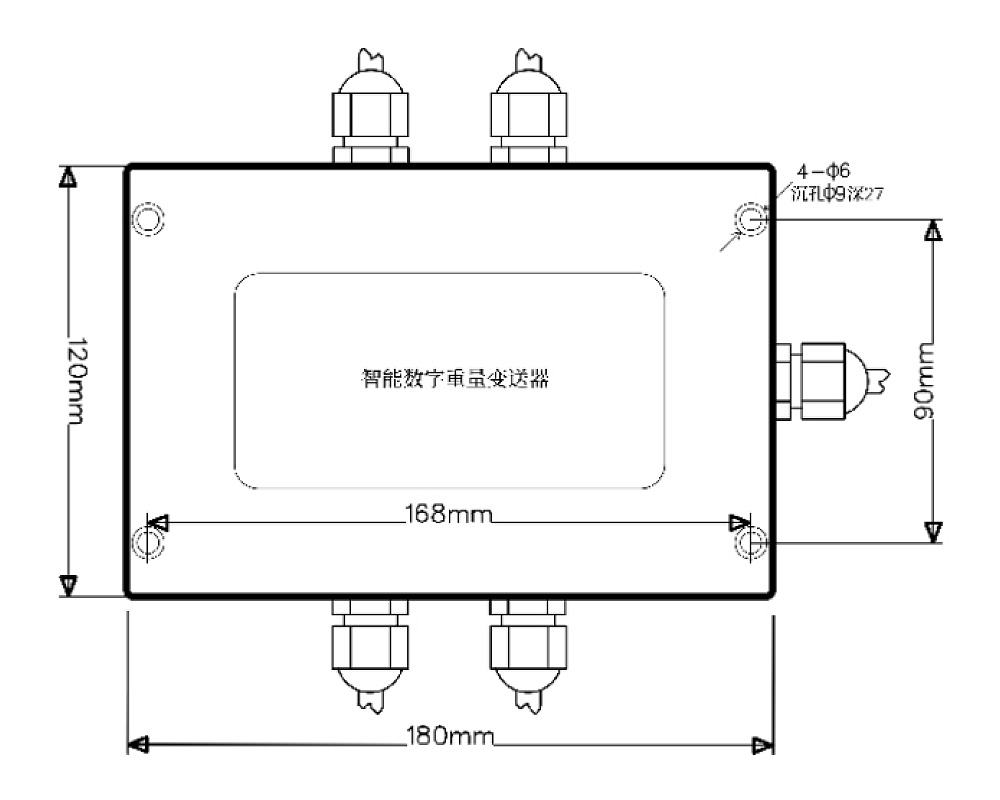

产品尺寸图
| 技术参数 Technical parameter | |||
| 线性精度Linear accuracy | 0.05%FS | 传感器激励电压Sensor Excitation Voltage | 直流12V,可驱动1-4只模拟式传感器(输出电阻≥350)DC 12V, capable of driving 1-4 analog sensors (Output Resistance ≥ 350Ω) |
| 综合精度Combined accuracy | 0.2%FS | 放大倍率Magnification | 电压90~900倍Voltage 90~900 times |
| 输出范围Output Range | 0~5V、0~10V或0~20mA、4~20mA0~5V, 0~10V, 0~20mA, or 4~20mA | 电流输出Current output | 最大负载电阻500欧姆Maximum Load Resistance 500Ω |
| 工作温度范围The operating temperature range | -10°C~50°C | 电压输出Voltage output | 最小负载电阻10,000欧姆Minimum Load Resistance 10,000Ω |
| 调零范围Zero adjustment range | ±50%FS | 使用温度为The service temperature is | -30°C~60°C,湿度为10% RH~85% RH,无冷凝-30°C~60°C, Humidity 10%~85% RH, Non-condensing |
| 适用传感器灵敏度The applicable sensor sensitivity | 1.0~3.0mV/V | 存贮温度为The storage temperature is | -40°C~85°C,湿度为10% RH~85% RH,无冷凝-40°C~85°C, Humidity 10%~85% RH, Non-condensing |
| 重量变送器的电源电压范围 | 直流18-24V,最大功耗1.5瓦。重量变送器不可与易产生电源噪声的设备如电机、继电器或加热器等共用一个电源。DC 18-24V, Max Power Consumption 1.5W.The weight transmitter must not share a power supply with devices prone to generating electrical noise, such as motors, relays, or heaters. | ||
