单点式传感器

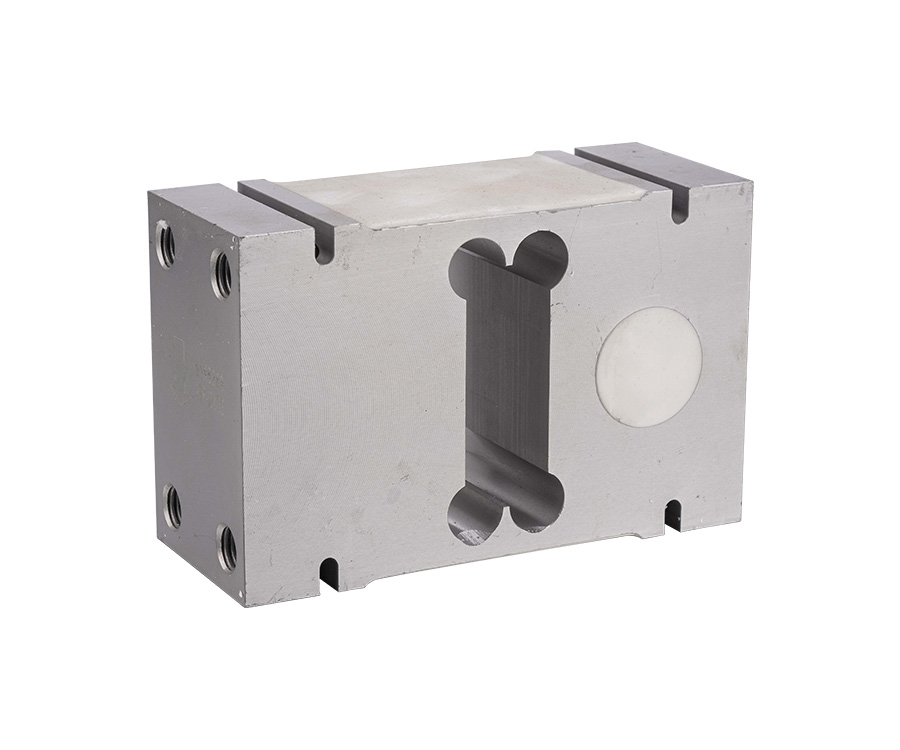

型号/品名：XSB
台秤、各种压式测力装置Platform scale, various pressure measuring devicesTECHNICAL PARAMETER 4Wires;Exc+(红,Red);Exc-(黑,Black);Slg+(绿,Green);Sig-(白,White)
应用范围
Platform scale
产品认证
台秤、各种压式测力装置
Platform scale, various pressure measuring devices
TECHNICAL PARAMETER 4Wires;Exc+(红,Red);Exc-(黑,Black);Slg+(绿,Green);Sig-(白,White)
产品参数表
| 量程(kg) Range | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
| 50~200 | 156 | 44 | 75 | 50 | 24 | M12 |
| 300~500 | 146 | 59 | 94 | 70 | 36 | M12 |
| 750~2000 | 176 | 75 | 124 | 95 | 46 | M16 |

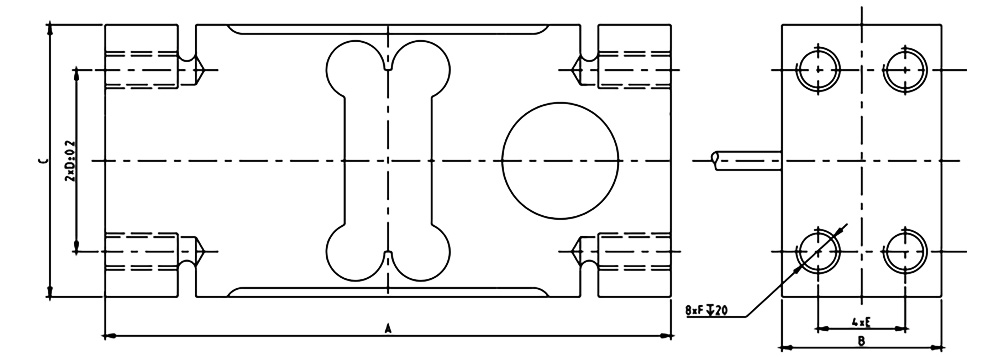

产品尺寸图
| 额定载荷Rated load | 50、100、200、300、500、750kg 1t、2t | 绝缘电阻 Insulation resistance | ≥2000MΩ |
| 精度等级 Accuracy class | ±0.03%F.S | 额定温度 Nominal Temp Range | -10~+40°C |
| 灵敏度 Sensitivity | 2.0±0.2mV/V | 工作温度范围 Service Temp Range | -20~+60°C |
| 线性误差 Non-linearity | ±0.02%F.S | 安全负载 Safe load limit | 150%F.S |
| 滞后误差 Hysteresis error | ±0.02%F.S | 破坏负载 Breaking laod | 200%F.S |
| 蠕变(30分钟) Creep(30min) | ±0.02%F.S | 额定激励电压 Nominal of range excitation | 10-12 V DC |
| 零点温度影响 TC ZERO) | ±0.02%F.S/10°C | 密封等级 Protection Class | IP65 |
| 灵敏度温度影响 TC SPAN | ±0.02%F.S/10°C | 材料 Material | 铝合金 Aluminium |
| 输入阻抗 Input resistance | 404±15Ω | 电缆 Cable | Length: 1.8m |
| 输出阻抗 Output resistance | 350±3Ω | 推荐最大安装台面 Maxplatform size | 600x600mm (50~200kg)600x800mm (300~500kg)1200x1200mm (750kg-2t) |
